Please note: these items are made to order, please allow 2-3 weeks for delivery
Multi User Telecommunications Outlet

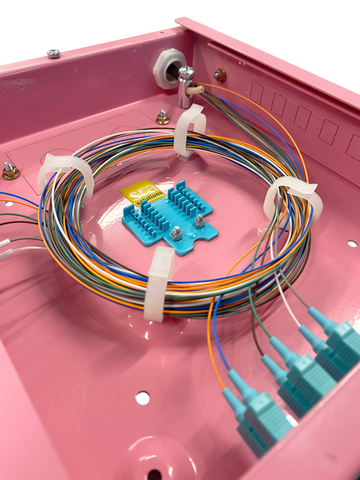

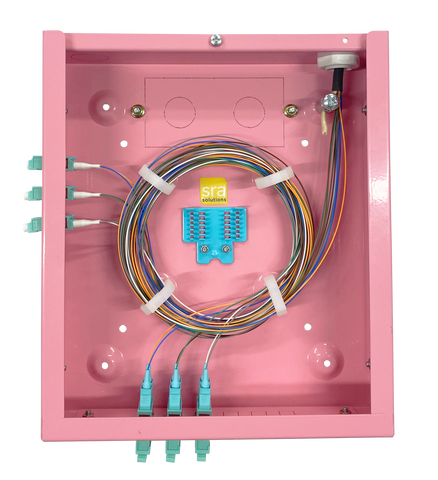

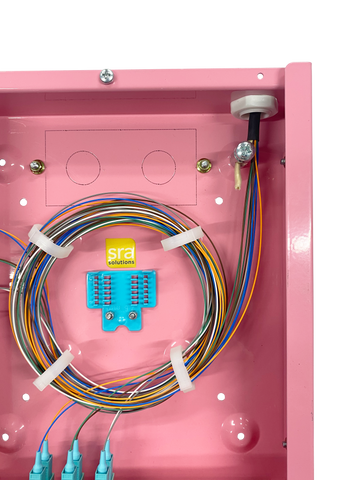

Multi User Telecommunications Outlet boxes are specifically designed for the direct termination of fibre and copper UTP cables. They incorporate added security
features which make them well suited for Government, Defence and fibre-to-the desk applications.
Key Features
- Four interchangeable face plate types - SC Duplex, RJ45, LC
Duplex or Blank - Enclosure is supplied complete with cable management,
fibre splice tray, strain relief post, sliding lid, cable entry
knockouts and multiple mounting positions - Recessed angled entry/plasterboard mount option with
25mm & 32mm cable entry provision - Available in a range of colours to suit any security level
Standard inclusions:

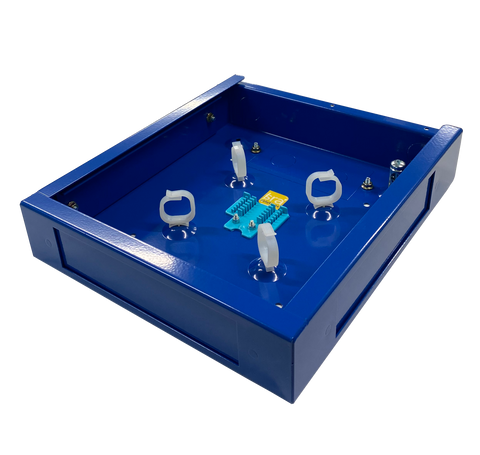

- 256 x 220 x 50mm Enclosure
- Secure polycarbonate clear cover
- Roto seal ready
- Plasterboard mounting knockout
- Cable strain relief point x4 (strain relief post supplied)
- Cable management ring x4
- Fibre splice tray
- NOTE: 3 Mounting Plates required for each MUTO
Options
- Plasterboard Mount
- Blank Infill Plate
- 6 x RJ45 Mount Plate
- 6 x SC Duplex Mount Plate
- 6 x LC Duplex Mount Plate
Features and Benefits:
- Versatile small size
- Clear Perspex cover for added security
- Knockout adapter and cable openings keep pests or vermin from entering unused ports
- Cable entry holes for wall mounted and concealed cable entry
- Provision for anti-tamper seals
- Two cable management clips for easier management of internal wiring
- IP20 Rated
Applications:
- Suitable for direct termination of riser fibre cable and UTP copper cable
- Remote cable terminations within building
- Defence requirements for identifying tampering or accidental fibre disconnections
- Fibre-to-the-desk applications
Cable Bend Radius Management
Cable management has become increasingly important in the MUTO design
process. SRA Solutions offer a range of standard loops and built-in bend radius
management for fiber and copper which can be customised on request.
Accessible and Visible Cable Infrastructure
The Australian Government Information Security Manual 2016, stresses that
within Protected Distribution Systems “proper cable management can minimise
the likelihood of unauthorised personnel inadvertently or deliberately accessing
system cables”.
The Information Security Manual also states that “Implementing accessible and
visible cable infrastructure can significantly reduce expenses resulting from
future upgrades, accreditation, fault finding, configuration management and
regular inspection for tampering or degradation.
Consolidation Point or Termination Point?
MUTOs are described as similar in function to consolidation points, which provide
interconnection between horizontal cables running from a floor distribution
room to those running to the work area, however MUTOs are best defined as
termination points allowing single or multiple horizontal cables to terminate in
one central location running directly to the workstation via a patch cord.
Quality Manufacturing
SRA Solutions is a business unit of Precision Metals Queanbeyan Pty Ltd.
Precision Metals operate one of Australia’s most advanced state-of-the-art facilities, utilising the latest technology, lean manufacturing techniques and an elite
team of professionals to provide high quality customised metal products.
We have been servicing the custom 19″ rack market both locally and overseas for
the last 30 years.
This extensive experience makes SRA Solutions a reliable supplier to government
and business organisations.
